Kurkesmurfer

VCV Rack 2 instrument family

SpaceTime

One programmable field of stages. Up to eight independent ways through it.

Architecture

An instrument assembled to fit the patch.

SpaceTime deconstructs the programming surface and function generators of the Buchla 248 concept into a contiguous VCV family. Stage blocks own their data, heads share the field without sharing transport, and MIDI sits transparently between them.

Head All (optional)→Head ×1–8→MIDI→Program→Stage4 ×1–16

Preview builds

Install SpaceTime manually.

Download the `.vcvplugin` package for Apple Silicon macOS, Intel macOS, Windows x64, or Linux x64 from GitHub Releases.

  1. In Rack, choose Help > Open user folder, then quit Rack.
  2. Place the package in the matching plugins-<OS>-<CPU> directory. Do not unpack it.
  3. Restart Rack and find the modules under Kurkesmurfer.
Download builds Source code

Release-candidate warning

These builds may contain defects, including incorrect control or MIDI behaviour, crashes, or loss of unsaved patch state. Back up important patches and report reproducible problems through GitHub Issues.

  • TestedApple Silicon macOS and principal workflows
  • PendingIntel macOS, Windows, and Linux platform acceptance
  • WarrantyProvided as-is under GPL-3.0-or-later

Module family

Seven roles, one shared instrument.

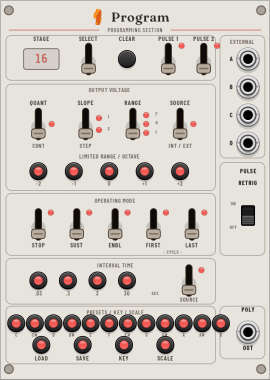

Program module

Program

Stage selection, modifiers, presets, scale, external inputs, and polyphonic output.

Manual

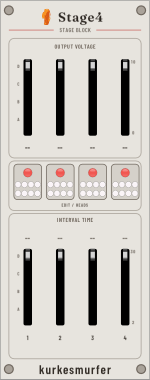

Stage4 module

Stage4

Four voltage and interval sliders with programming and playhead feedback.

Manual

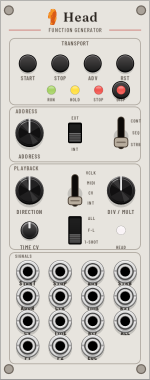

Head module

Head

An independent function-generator playhead with transport, addressing, clocking, and outputs.

Manual

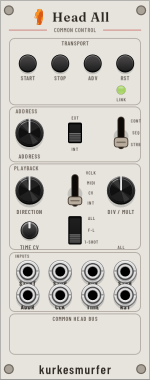

Head All module

Head All

Common transport, playback modes, and normalled CV inputs for every connected Head.

Manual
MIDI module

MIDI

Controller, clock, transport, preset, stage-programming, and per-head MIDI gateway.

Manual
Glue Left module

Glue Left

The receiving endpoint of a SpaceTime-only virtual expander bridge.

Manual
Glue Right module

Glue Right

The sending endpoint that lets a large chain cross rack space.

Manual

Lineage

A behavioural reinterpretation.

SpaceTime is inspired by the Buchla Model 248 MARF and Tiptop Audio/Buchla 248t. Its code, panel artwork, MIDI system, extended playhead modes, and virtual bridge are original work. It is not affiliated with or endorsed by Buchla USA or Tiptop Audio.

Current status

  • LicenseGPL-3.0-or-later
  • VCVRelease candidate verification
  • MetaModuleFeasible fused edition planned
  • ContactGitHub issues
